stage1工作內容

負責車體尺寸設計 繪圖 以及CoppleliaSim模擬

產品尺寸設計

先以2D軟體設計尺寸 再以3D軟體建模

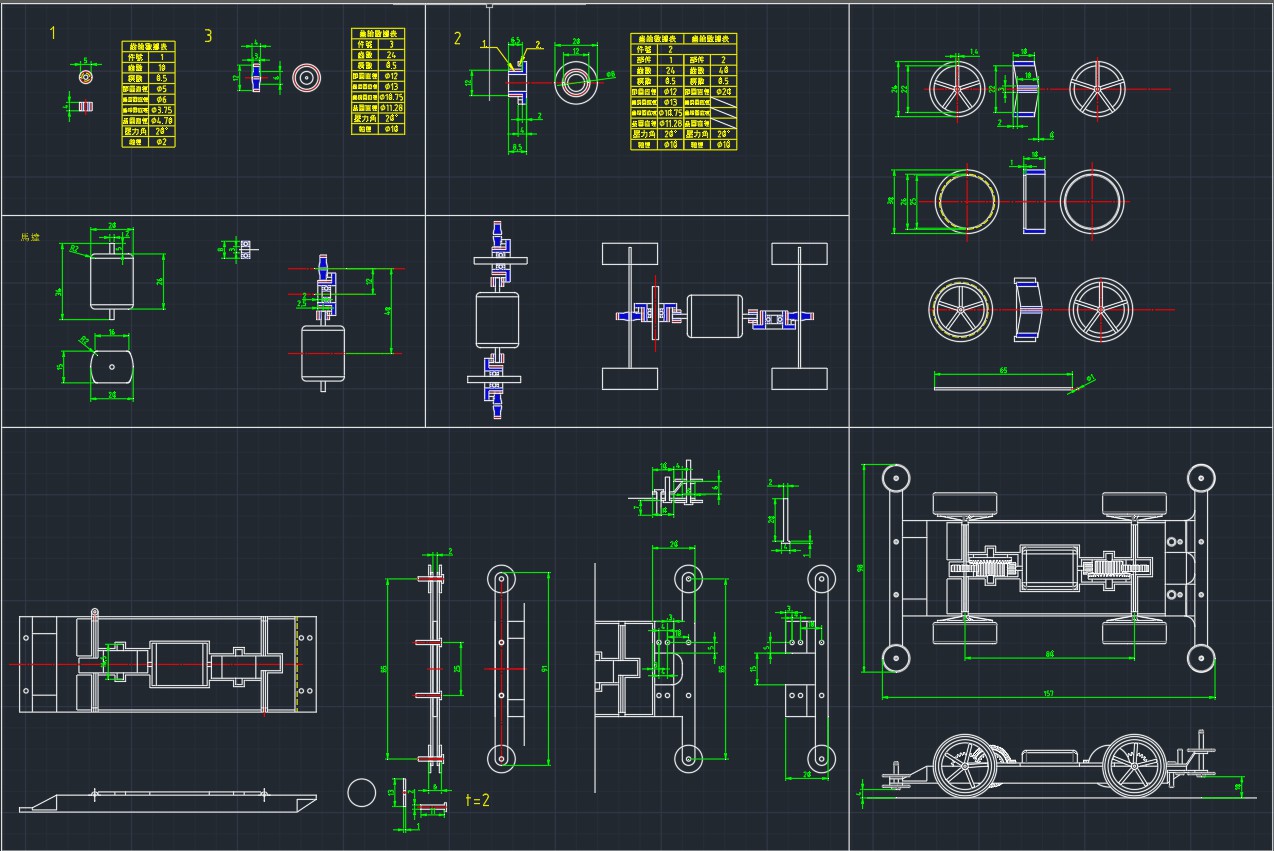

2d產品設計圖▼

3d軟體實體圖▼

CoppleliaSim模擬

3D軟體建模後 放進CoppleliaSim裡進行物理模擬除錯

反覆進行錯更改模型
